Stauff SE-070-H-03-B/4 Replaces the Stauff SE070C03B2
Stauff SE-070-H-03-B/4 Replaces the Stauff SE070C03B2
SE-070-H-03-B/4
Stauff
Stauff SE070C03B2
Stauff
Stauff SE070C03B2
Brand:
Stauff
Description

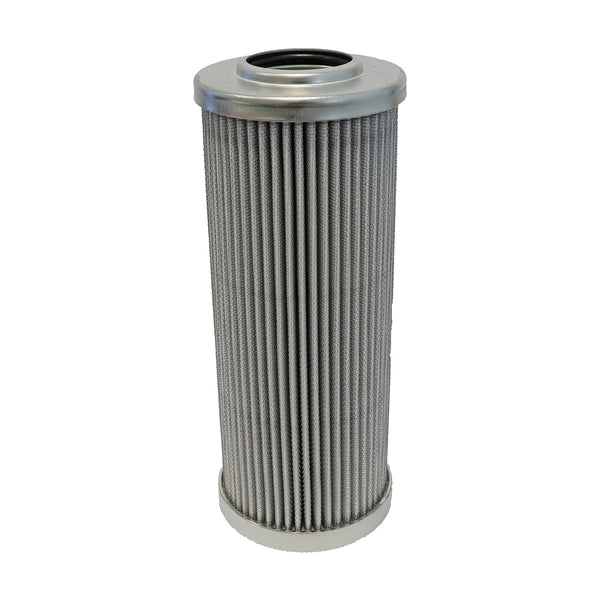

Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 69 Inner Diameter (mm): 34,2 Length (mm): 175 Sealing: NBR, β ratio >200
Regular price
€161,95
Unit price
per
0.79 kg
8421.99.90
Germany
1.74 kg
8421.99.90
United Kingdom
0.79 kg
8421.99.90
Italy
0.78 kg
8421.99.90
France
Description
Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 69 Inner Diameter (mm): 34,2 Length (mm): 175 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 3µ @ β200 |
| Efficiency 2 | 5µ @ β1000 |
| Outer Diameter | 69.0 mm |
| Inner Diameter | 34.1 mm |
| Length | 173.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
