Stauff RE-160-G-05-B/4 Replaces the Stauff RE160E05B
Stauff RE-160-G-05-B/4 Replaces the Stauff RE160E05B
RE-160-G-05-B/4
Stauff
Stauff RE160E05B
Stauff
Stauff RE160E05B
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 114 Inner Diameter (mm): 68,2 Length (mm): 334 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
€232,95
Unit price
per
1.73 kg
8421.99.90
Germany
1.64 kg
8421.99.90
France
1.1 kg
8421.29.80.90
United States
2.1 kg
8421.99.90
Italy
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 114 Inner Diameter (mm): 68,2 Length (mm): 334 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 114.0 mm |
| Inner Diameter | 68.5 mm |
| Length | 333.0 mm |
| Bypass Pressure | 3.0 BAR |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 20 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Genuine Product
Find out more
Stauff Product

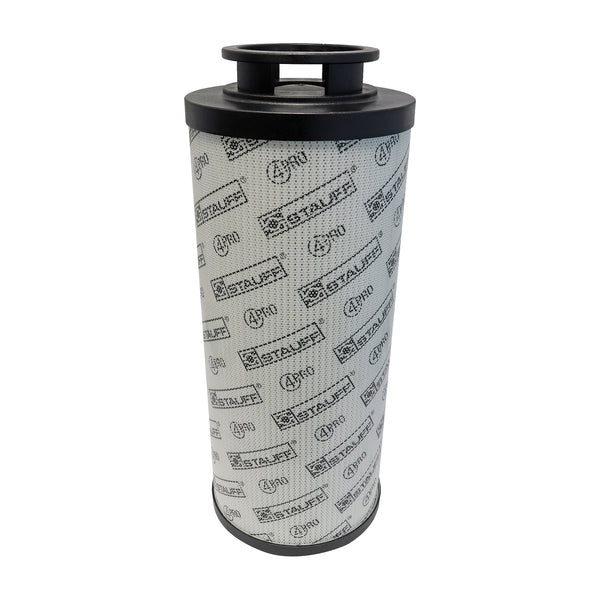

Genuine Stauff RE-160-G-05-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
