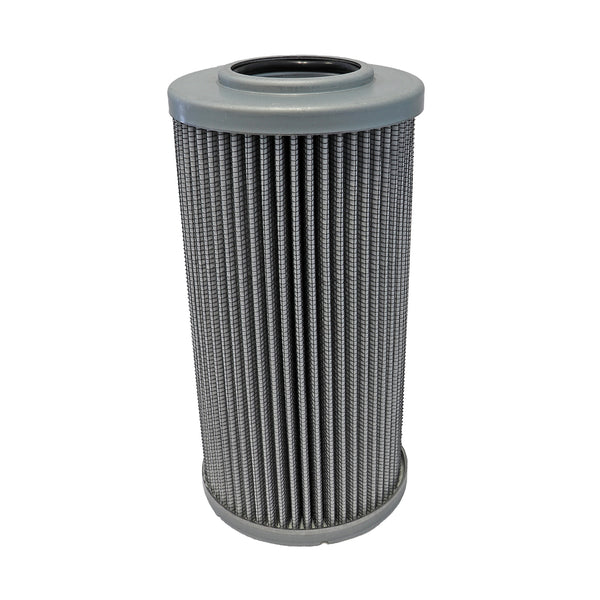

Stauff NL-160-F-10-B/4 Replacement DIN Pressure Filter
Stauff NL-160-F-10-B/4 Replacement DIN Pressure Filter
NL-160-F-10-B/4
Stauff
Stauff
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
Ships in 8 Weeks
€360,95
Price€360,95/each
Shipped Thursday, 29 May
Order within 23hrs 47mins
Order within 23hrs 47mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €353,74 |
| 5 - 9 | €346,52 |
| 10+ | €339,30 |
0.98 kg
8421.99.90
Germany
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 78.0 mm |
| Inner Diameter | 40.2 mm |
| Length | 158.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
