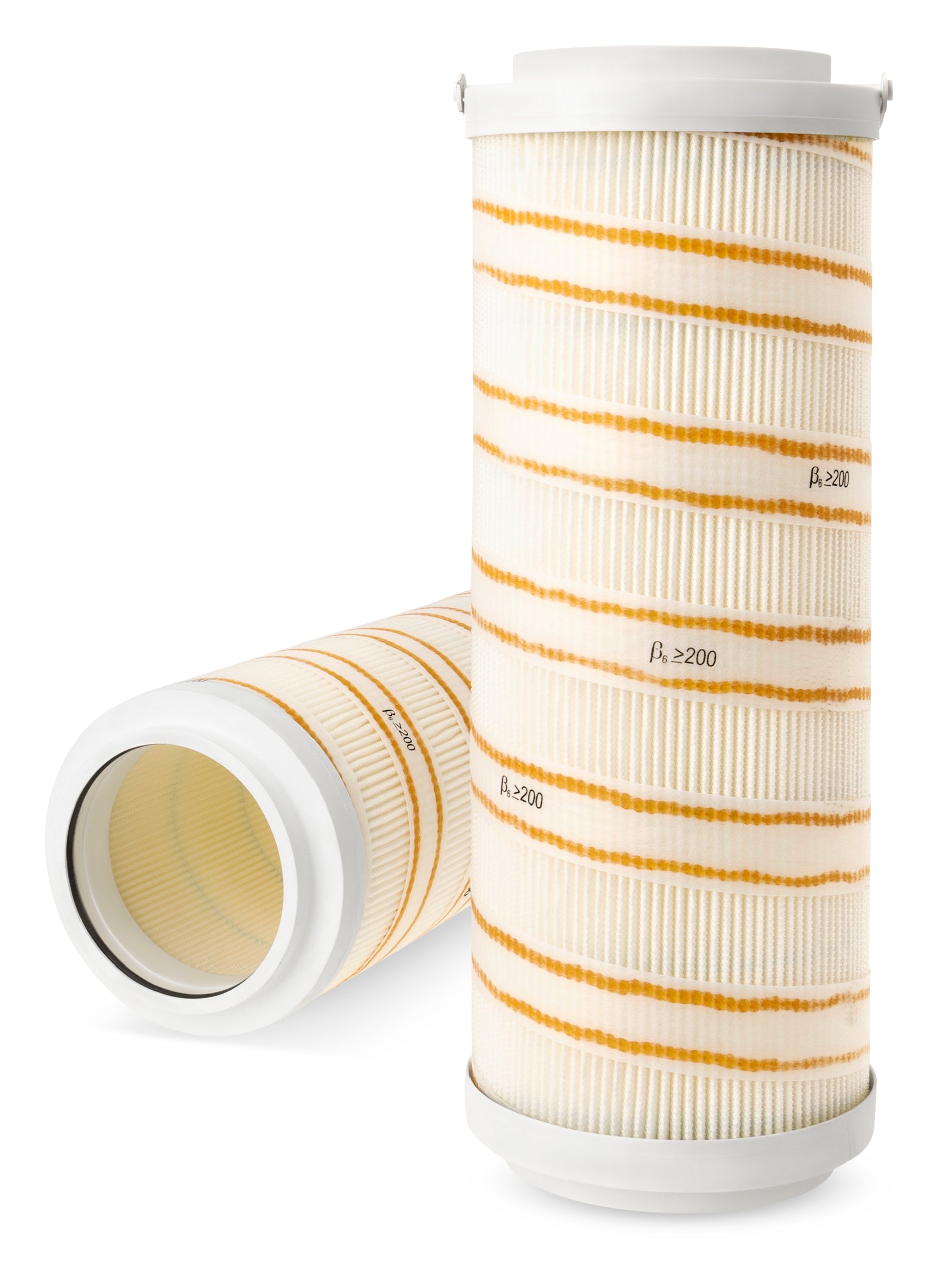

Fleetguard HF30870 Replacement Coreless Filter

Fleetguard HF30870
Fleetguard HF30870
Representative product image Product image feedback

Fleetguard HF30870 Coreless Filter

Brand: Fleetguard
Description

Fleetguard® HF30870 hydraulic coreless filter is designed to help keep your precision hydraulic systems running as intended and offers solutions for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
CHF 304.00
1.87 kg
0.0254 m³
84 pcs
United States
8421.99.90
2.75 kg
0.007 m³
84 pcs
United Kingdom
8421.99.90
1.38 kg
84 pcs
France
8421.99.90
1.44 kg
0.0126 m³
84 pcs
United States
8421.29.80.90
1.25 kg
0.007 m³
84 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF30870 hydraulic coreless filter is designed to help keep your precision hydraulic systems running as intended and offers solutions for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 372.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF30870

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Coreless Filter
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 372.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C
