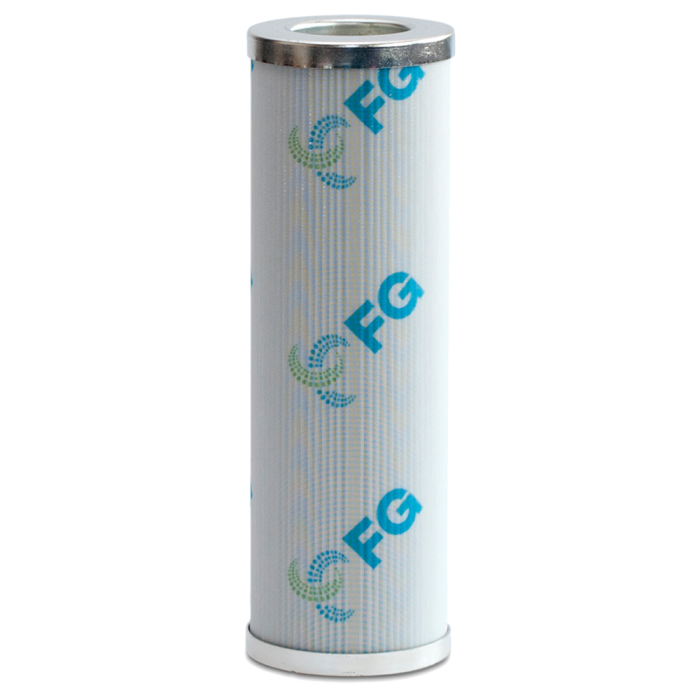

Filtration Group 77684632 Replaces the Mahle 852149SM3

Filtration Group 77684632 Replaces the Mahle 852149SM3
77684632
Filtration Group
Mahle 852149SM3
Filtration Group
Mahle 852149SM3
Brand:
Filtration Group
Sort by:
Description
Deep filters made of several precisely matched glass fiber layers (progressive structure) for the filtration of hydraulic and lubricant fluids, fuels as well as flame-retardant and synthetic liquids.
Nominal size 5 to 1800
- Guaranteed separation rates according to multipass test according to ISO 16889
- Universally applicable for hydraulic and lubricants, fuels, aqueous media and synthetic liquids
- Stainless steel wire
€74,95
Price€74,95/each
Shipped Thursday, 11 September
UNITS | PER UNIT |
---|---|
2 - 4 | €73,46 |
5 - 9 | €71,96 |
10+ | €70,46 |
8421.99.90
United States
Description
Deep filters made of several precisely matched glass fiber layers (progressive structure) for the filtration of hydraulic and lubricant fluids, fuels as well as flame-retardant and synthetic liquids.Nominal size 5 to 1800
- Guaranteed separation rates according to multipass test according to ISO 16889
- Universally applicable for hydraulic and lubricants, fuels, aqueous media and synthetic liquids
- Stainless steel wire
Specification
Style | Pressure Filter |
Efficiency 1 | 3µ @ β200 |
Efficiency 2 | 5µ @ β1000 |
Outer Diameter | 30 mm |
Inner Diameter | 16.1 mm |
Length | 70 mm |
Media | Glass Fiber |
Flow Direction | OUT-IN |
Δ Collapse Pressure | 30 BAR |
Seal Material | Nitrile |
Temperature Range | -30 - +100°C |
