UFI ERA31NCC Replaces the UFI 7604100

UFI ERA31NCC
UFI ERA31NCC

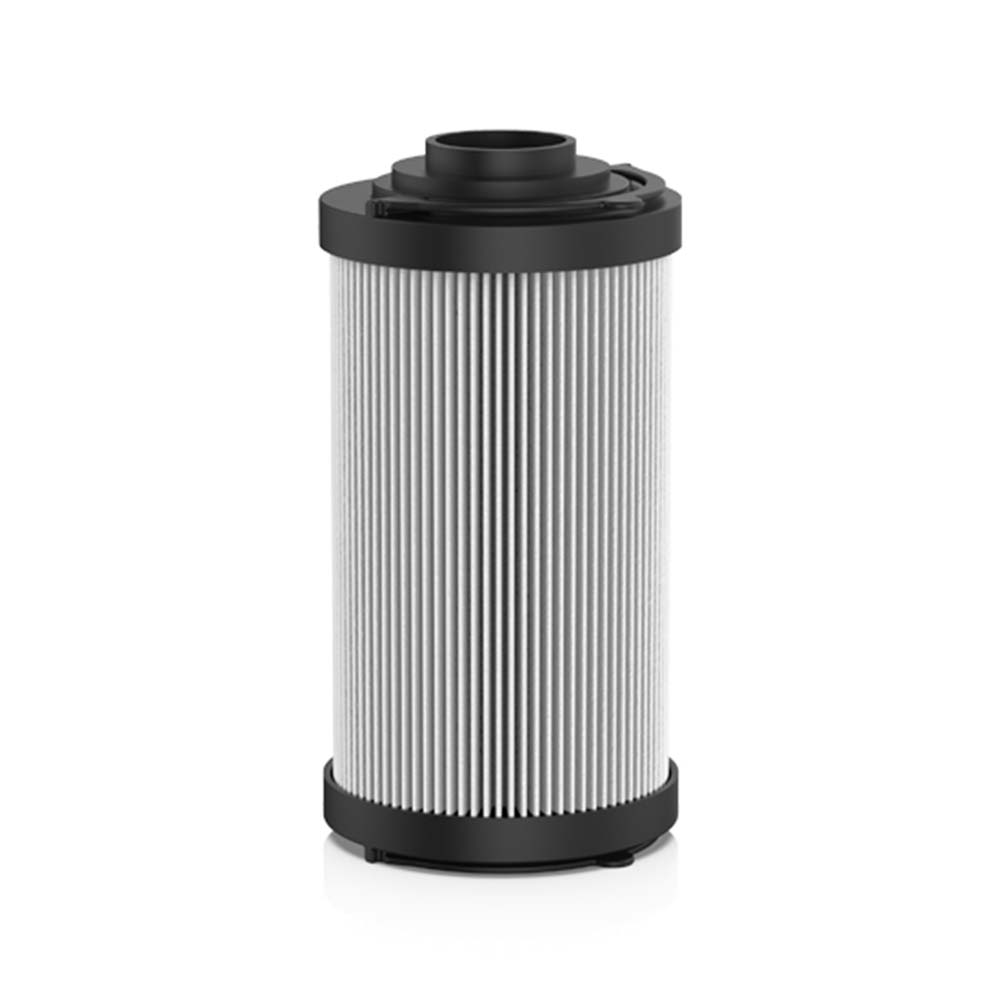

Representative product image Product image feedback

UFI ERA31NCC Replaces the UFI 7604100

ERA31NCC
UFI
UFI 7604100
Description

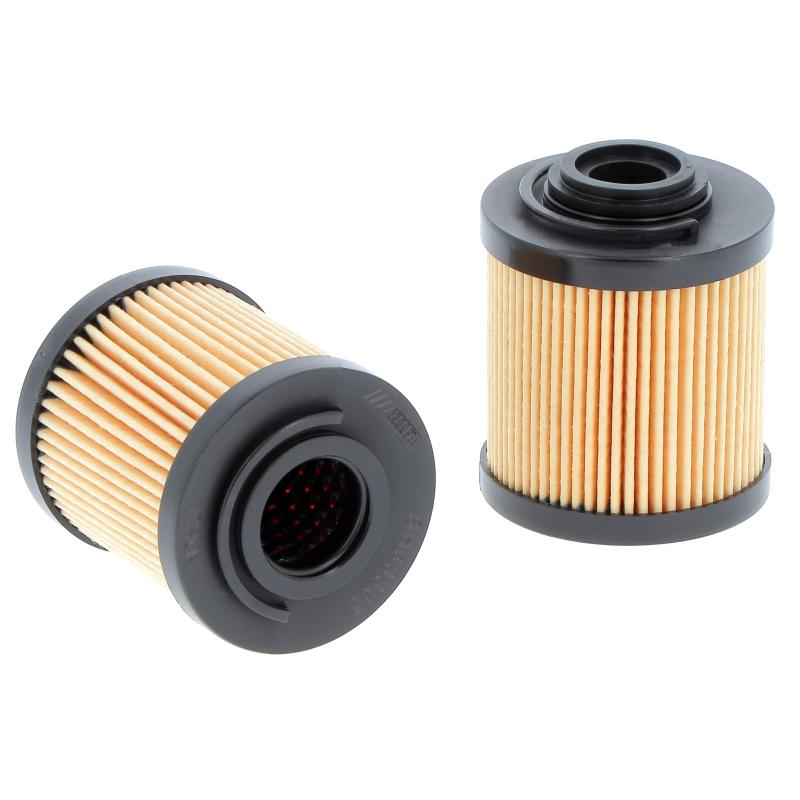

Original UFI ERA31NCC replacement filter.

Brand: UFI
Price Matched
€11,95
8421.99.90
Italy
0.2 kg
8421.99.90
Italy
0.16 kg
8421.99.90
France
Shipping Terms

Description

Original UFI ERA31NCC replacement filter.

Specification

StyleReturn Filter
Efficiency 110µ @ β2
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 85.0 mm
Bypass Pressure 1.7 BAR
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Genuine Product

Find out more
UFI Brand Logo

UFI Product

Genuine UFI ERA31NCC

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 85.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
