Mann Filter HD 8003 Replaces the Volvo 2906601

2906601
2906601
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

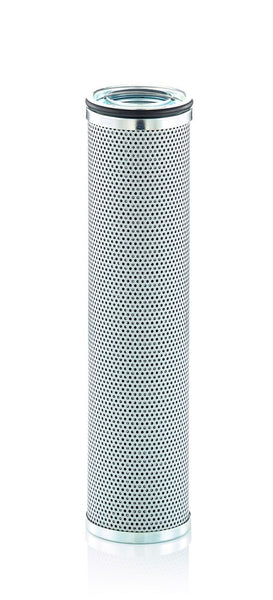

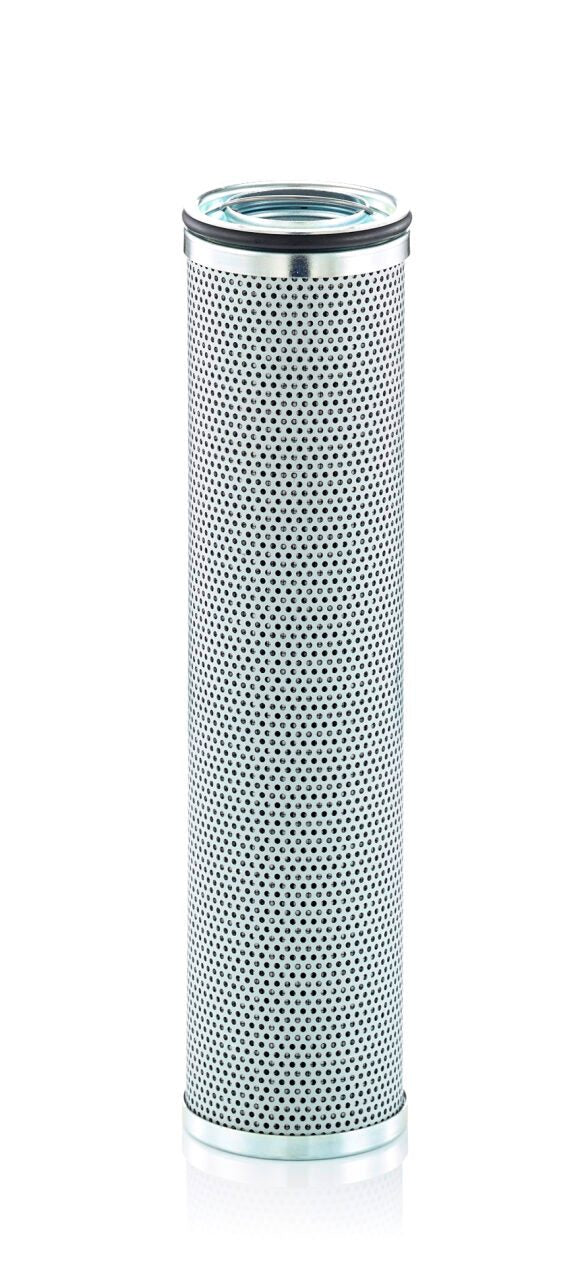

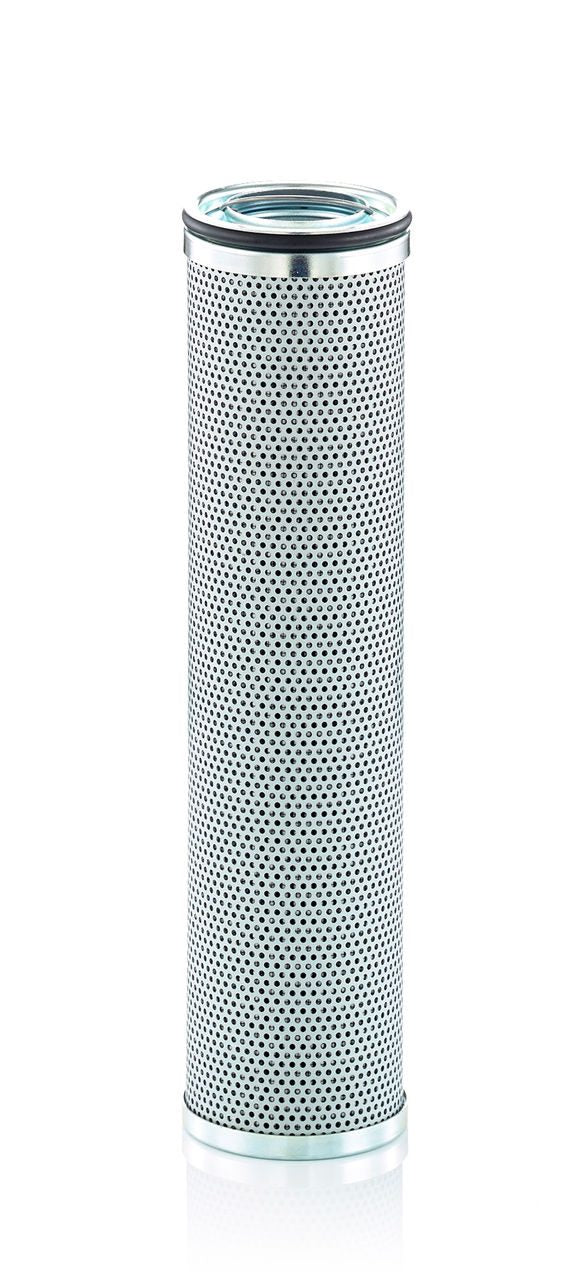

Mann Filter HD 8003 Hydraulics | Replaces the Volvo 2906601

Brand: Mann Filter
Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
CHF 93.00
Italy
8421.99.90
0.76 kg
0.0031 m³
France
8421.99.90
0.7 kg
0.0019 m³
Italy
8421.99.90
0.9 kg
0.0057 m³
Italy
8421.23.00
0.7 kg
United Kingdom
8421.99.90
Shipping Terms

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 78.0 mm
Dimension B 44.0 mm
Dimension H 313.0 mm
Default Brand Logo

Same Fit-Form & Function

As the Genuine Volvo 2906601

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Special Filter
Outer Diameter 77.8 mm
Inner Diameter 77.5 mm
Length 313.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
